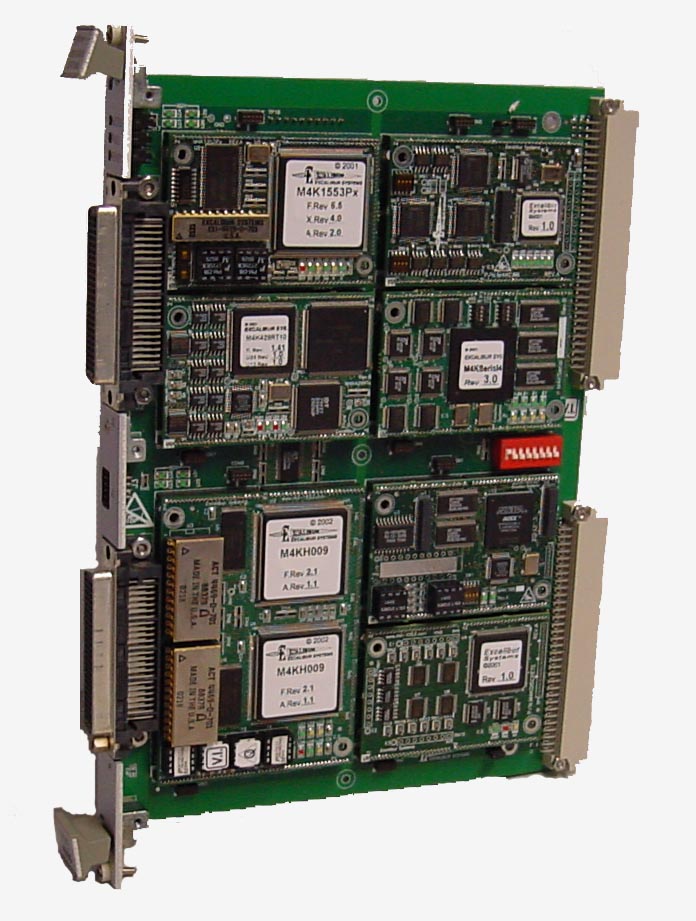

EXC-4000VME/xx, EXC-4000VXI/xx cards & M4K708 module

EXC-4000VME/xx 和 EXC-4000VXI/xx 卡为VME和VXI系统支持多达16个arinc-708 / 453天气雷达显示数据总线使用m4k708模块通道。每个通道可选择发送或接收，实现64K字FIFO和支持轮询和/或中断驱动的操作。

Exc-4000vme / XX和XX exc-4000vxi /提供C驱动程序，包括源代码。为I / O连接提供的交配连接器。

请参阅多协议4000模块的附加信息的协议，可以添加到这个卡。

订货信息:

产品型号	描述
EXC-4000VME/xx	Multi-protocol interface for VME compatible systems B-size board.
EXC-4000VXI/xx	Multi-protocol interface for VXI compatible systems C-size board, complete with shield.
Cx M4K708	ARINC-708/453 interface module. Supports 2 channels.
X4K-xx-0.5	50cm cable adapter for EXC-4000 card [optional]

Note:
"xx” specifies the modules ordered with the carrier board.
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
