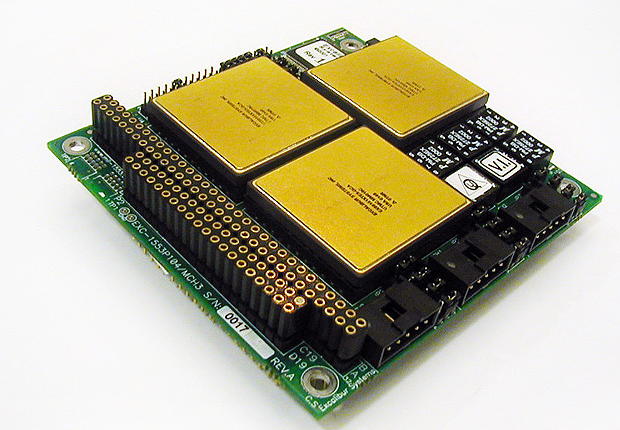

EXC-1553P104/MCH-x

The EXC-1553P104/MCH-x is available with up to three channels, and all versions may be ordered in commercial or extended temperature grades. Each dual redundant channel may be programmed to operate as a Bus Controller, Remote Terminal, Bus Monitor or Remote Terminal/ Concurrent Bus Monitor. The board, when used in conjunction with a PC/104 based host, provides a compact yet sophisticated solution.

The EXC-1553P104/MCH-x card is supplied with C drivers, including source code, and Merlin for MCH software. Mating connector provided for I/O connection.

Please see our Dragon rugged PC/104 system for a complete PC/104 solution.

Ordering Information:

Part Number	Description
EXC-1553P104/MCH-1	Single channel, MIL-STD-1553 interface board for PC/104 systems.
EXC-1553P104/MCH-2	Dual channel, MIL-STD-1553 interface board for PC/104 systems.
EXC-1553P104/MCH-3	Three channel, MIL-STD-1553 interface board for PC/104 systems.

Note:
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
"-003" added to the end of EXC-1553P104//MCH-1 only (specifies conformal coating).
