EXC-1553cPCI/MCH-x

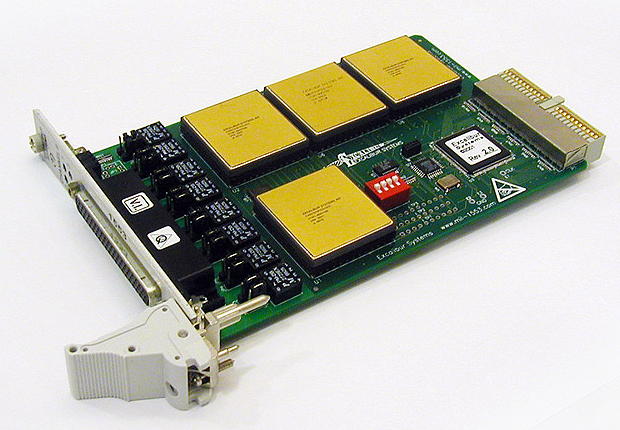

The EXC-1553cPCI/MCH-x is a multi-channel (up to four channels) MIL-STD-1553 interface board for Compact PCI systems. It is based on a MIL-STD-1553 certified chip used in many flight critical systems.

Each dual redundant channel supports both MIL-STD-1553A and MIL-STD-1553B protocols. Channels may be programmed individually to operate as a Bus Controller, Remote Terminal, Bus Monitor, or Remote Terminal / Concurrent Bus Monitor. The 32K x 16 of RAM allotted to each channel for the storage of data and control parameters may be updated in real time.

The EXC-1553cPCI/MCH is supplied with C drivers, including source code, and Merlin for MCH software. Mating connectors provided for I/O connection.

The EXC-1553cPCI/MCH is fully software compatible with the M4K1553MCH Module for the EXC-4000 carrier board family.

Ordering Information:

Part Number	Description
EXC-1553cPCI/MCH-1	Single channel, MIL-STD-1553 interface board for Compact PCI systems.
EXC-1553cPCI/MCH-2	Dual channel, MIL-STD-1553 interface board for Compact PCI systems.
EXC-1553cPCI/MCH-3	Three channel, MIL-STD-1553 interface board for Compact PCI systems.
EXC-1553cPCI/MCH-4	Four channel, MIL-STD-1553 interface board for Compact PCI systems.
X1DD2BA1-0.3	30cm cable adapter for EXC-1553cPCI/MCH-1 cards
X1DD4BA1-0.3	30cm cable adapter for EXC-1553cPCI/MCH-2 cards
X1DD6BA1-0.3	30cm cable adapter for EXC-1553cPCI/MCH-3 cards
X1DD8BA1-0.3	30cm cable adapter for EXC-1553cPCI/MCH-4 cards

Note:
"-E" added to the end of the part number specifies extended temperature (-40° to +85°C) option.
"-001" added to the end of the part number specifies conformal coating option.
